The justify-content and align-content Properties

In the previous CSS Grid tutorial, you learned about the align and justify properties to center and align items within a grid on the horizontal and vertical axes.

However, there are cases in which the total size of the grid is less than the size of the grid container. This happens because all items within the grid and the container itself are sized with fixed values (px, em, rem).

In such cases, it is necessary to align the tracks themselves, that is the whole grid, in order to exploit and fill up that additional empty space. In such a situation, you can make use of the align-content and justify-content properties. This is what I will explain in this tutorial.


Step #1. Create the HTML

  • Open your preferred code editor.
  • Create an HTML file.
  • Type this command if the Emmet extension is available in your code editor:

.container>.item.item${$}*5

  • Hit the Tab key.
  • If you don’t have the Emmet extension installed, copy and paste this code:

<div class="container"></p>
     <div class="item item1">1</div>
     <div class="item item2">2</div>
     <div class="item item3">3</div>
     <div class="item item4">4</div>
     <div class="item item5">5</div>
</div>


Step #2. Create the CSS

It’s time to create the global styles for the items you’ve just created.

  • Create a CSS file and link it to your HTML file.
  • Add the following styles:

/* GLOBAL STYLES */

     * {
       box-sizing: border-box;
       }

   body {
   background-color: #AAA;
   margin: 50px;
   }

   /* Each item in the grid contains numbers */
   .item {
   /* Center the contents of the grid items. Making each grid item a Flex Container */
   display: flex;

   /* Horizontal and Vertical centering */
   justify-content: center;
   align-items: center;
   border: 5px;
   border-radius: 3px;
   font-size: 2em;
   font-family: sans-serif;
   font-weight: bold;
   }

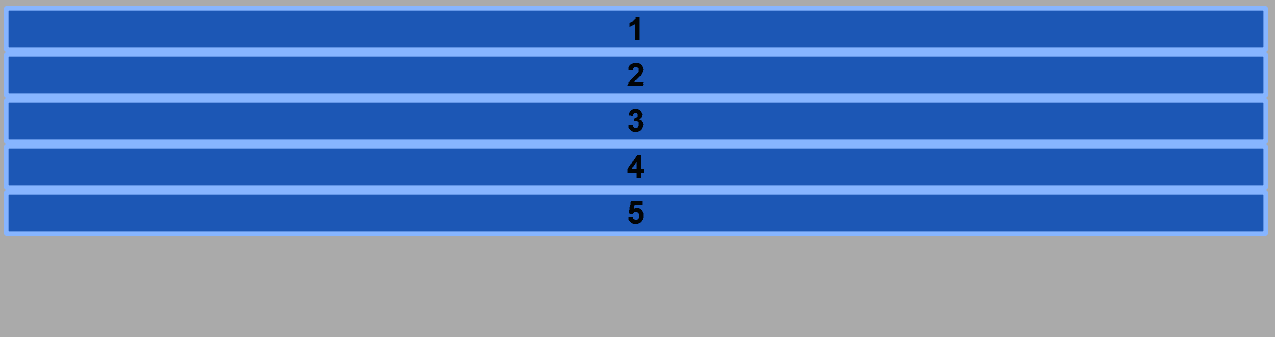

Add the following HTML code


Step #3. Create the CSS Grid

Create a grid with 3 columns and 2 rows. The first and third columns will have a width of 120px. The second column will have a width of 180px. The gap between columns will be set to 2rem, that’s about 32px on a desktop screen. Each row will have a height of 80px.

The grid container itself will have a width of 900px and a height of 450px.



/* CSS Grid Styles */

  .container {
      display: grid;
      border: 4px solid #fff;
      width: 900px;
      height: 450px;
      grid-template-columns: 120px 180px 120px;
      grid-template-rows: 80px 80px;
      grid-gap: 2rem;
  }

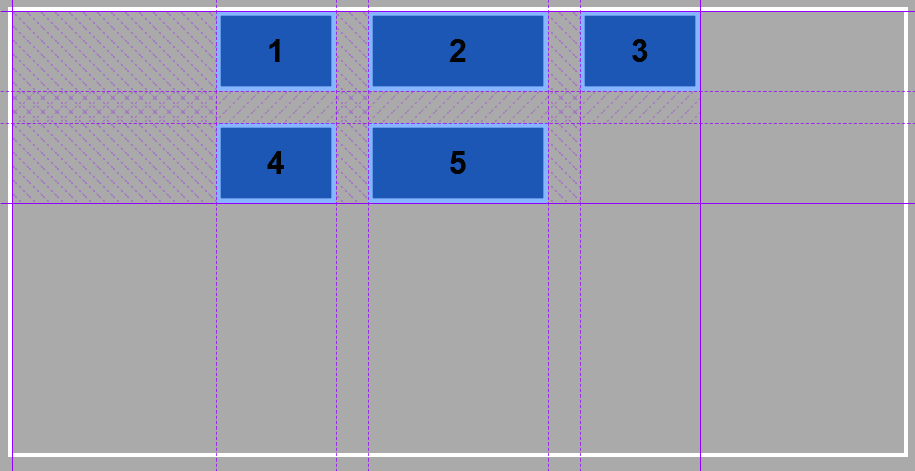

The grid container

As you can see, the grid container is wider and taller than the grid itself. The justify-content and align-content properties are used to distribute and/or align all grid items (the tracks) within the grid container. Let’s take a look at the possible values for these properties.


Step #4. The justify-content and align-content properties

  • Edit the CSS code:

.container {
      display: grid;
      border: 4px solid #fff;
      width: 900px;
      height: 450px;
      grid-template-columns: 120px 180px 120px;
      grid-template-rows: 80px 80px;
      grid-gap: 2rem;
      justify-content: start;
      align-content: start;
  }

You will see no difference when refreshing your browser tab, and that’s because the default value for these two properties is start.

Let’s move the grid on the horizontal axis.

  • Edit the CSS code:

.container {
      display: grid;
      border: 4px solid #fff;
      width: 900px;
      height: 450px;
      grid-template-columns: 120px 180px 120px;
      grid-template-rows: 80px 80px;
      grid-gap: 2rem;
      justify-content: center;
      align-content: start;
  }

Edit the CSS code

The whole grid has moved to the center of its container on the horizontal axis. Let’s try the vertical axis.

  • Edit the CSS code:

.container {
      display: grid;
      border: 4px solid #fff;
      width: 900px;
      height: 450px;
      grid-template-columns: 120px 180px 120px;
      grid-template-rows: 80px 80px;
      grid-gap: 2rem;
      justify-content: center;
      align-content: end;
  }

Edit the CSS code

By now you already know how to center the whole grid within its container. But what if you want to distribute all grid tracks over the whole grid container? There are three additional values, that will help you achieve this:

  • space-around
  • space-between
  • space-evenly

Let's see them in action.

  • Edit the CSS code in order to test these values:

.container {
      display: grid;
      border: 4px solid #fff;
      width: 900px;
      height: 450px;
      grid-template-columns: 120px 180px 120px;
      grid-template-rows: 80px 80px;
      grid-gap: 2rem;
      justify-content: space-around;
      align-content: space-between;
  }

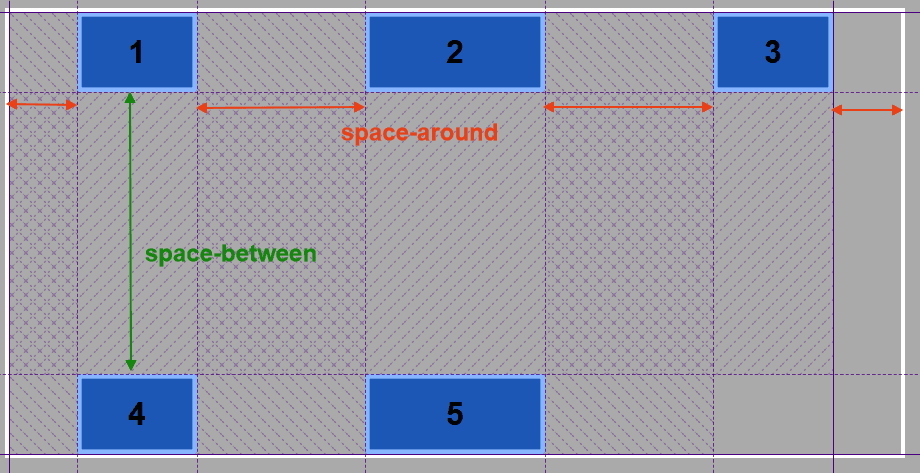

The space-around property means that the free space is distributed on each side of the items of the grid, in this particular case on the horizontal axis.

The space-between on the other hand, means that the available free space is distributed between the items of the grid, in this case on the vertical axis.

Edit the CSS code

Notice also, that the gap between columns and rows does not correspond to the declared value anymore. Furthermore, items will also increase their size, if they are spanned across multiple tracks.

  • Edit the CSS code once again:

.container {
      display: grid;
      border: 4px solid #fff;
      width: 900px;
      height: 450px;
      grid-template-columns: 120px 180px 120px;
      grid-template-rows: 80px 80px;
      grid-gap: 2rem;
      justify-content: space-evenly;
      align-content: space-evenly;
  }

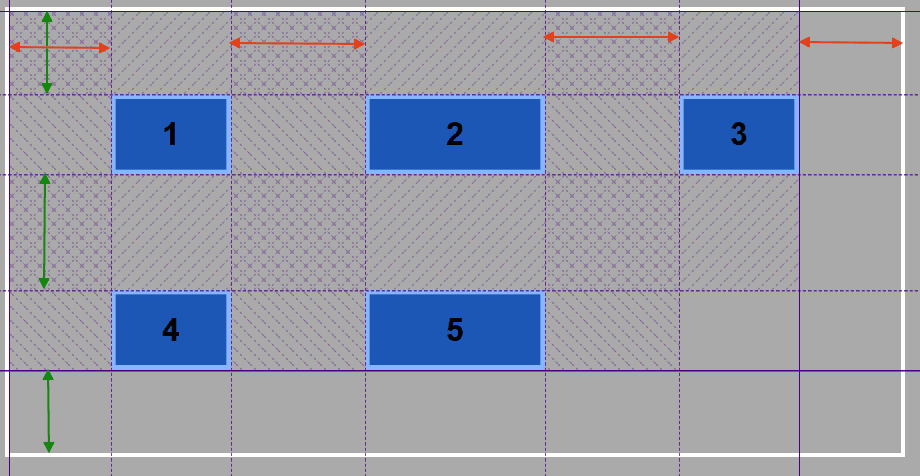

The space-evenly property distributes the available space evenly around all grid items, including all the ends i.e. up, down, and on both sides of the grid.

space-evently distributes the available space

The space between the column track 1 and the column track 2 is the same as the space between the column track 1 and the left border of the grid container plus the column gap. The same applies for row tracks.

Time for you to experiment with this acquired knowledge. Build a grid with multiple columns and rows and span some of the items inside that grid. After that, test the justify-content and align-content properties. Make sure that the size of the grid container is larger than the size of the grid itself.

Thanks for reading!
